Vertical Mini-Box Stitchers VS3M85, V3M116
| LxWxH | 240x440x500 mm | ||
| Weight | 40 kgs | ||
| Wire used | flat wire 0.43x1.55 mm | ||
| Voltage | 110V single phase 1/8 HP, 60Hz | 220V single phase 1/8 HP, 50Hz | |
| Operating Type | Single shoot with pedal |
Continue shoot with pedal
|
Touch Switch |
| Anvil Type | Standard type | L type | |

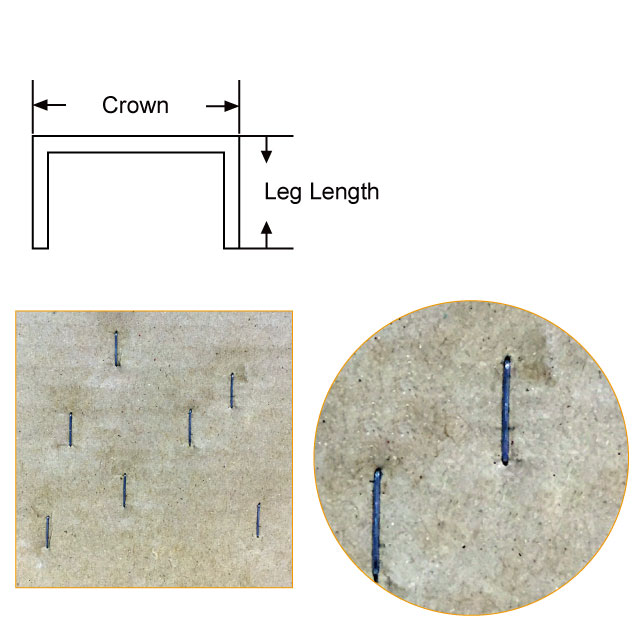

| Model No | Crown | Leg Length | Throat Depth |
| VS3M85 | 8 mm | 5.0 mm | 210 mm |
| VS3M116 | 11 mm | 6.0 mm | 210 mm |
APPLICATION
Cardboard box packaging
Color box packaging
Blister packs packaging
FEATURES
Easy operation - automatic stapling and foot pedal control
Mini size - occupied only 24x44 cm
Precision engineered parts - extend you a faultless job and perfect clinching
Deep throat - up to 21 cm for a wide range of stapling
